Place of Origin: |
Jiangsu China |
Brand Name: |
ALLMAN |
Model Number: |
BHW-1200 |
Minimum Order Quantity: |
One pcs |
Packaging Details: |
Export-specific kraft paper cartons |
Delivery Time: |
According to your quantity |
Payment Terms: |
TT |
Supply Ability: |
1000 pcs/Months |
Advantages of the Manual Hand Winch
Date Sheet:
|
Model |
BHW-800 |
BHW-1200 |
BHW-1800 |
BHW-2600 |
|
Lifting Capacity 1st Rope Layer(kg) |
180 |
270 |
410 |
600 |
|
Pulling Capacity 1st Rope Layer(kg) |
370 |
545 |
820 |
1200 |
|
Required Efforts 1st Rope Layer(kg) |
14.5 |
15 |
22 |
19 |
|
Drum Diameter（mm) |
21 |
48 |
60 |
75 |
|
Gear Ratio |
3.7:1 |
4.1:1 |
5:1 |
10:1 |
|
Rope Diameter(mm) |
4 |
4 |
5 |
6 |
Friendly remind: Standard rope length of ALLMAN Hand Winch is 5M or 10M.
And the max rope length of ALLMAN Brake Hand Winch is 26M.

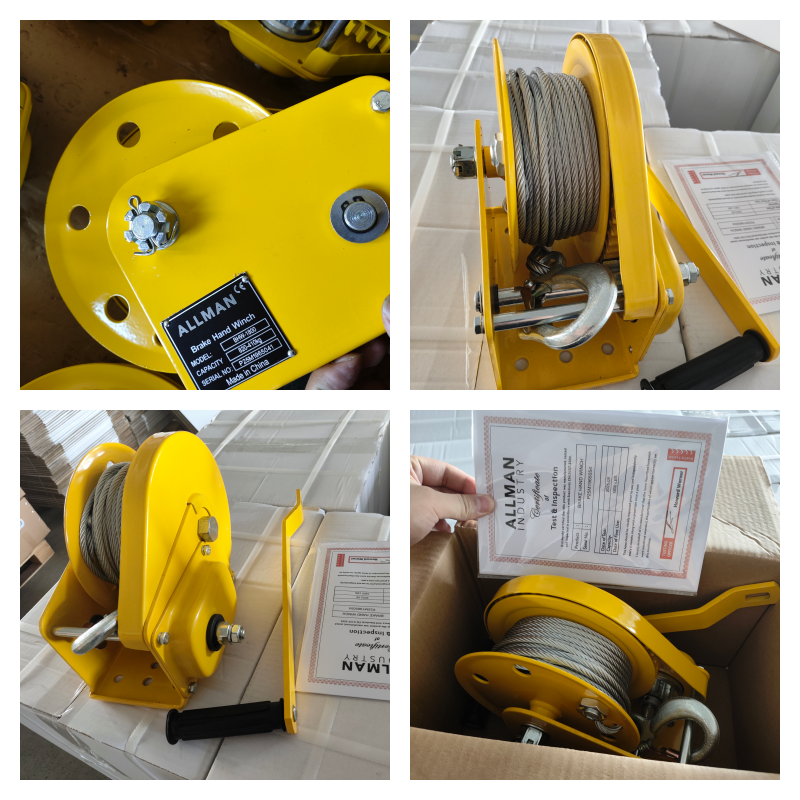

All winches are tested before leaving the factory and then packaged in cardboard boxes. A test report and operating manual are included with each shipment.
Normal Usage of Hand Winch:
You can use the hand winch together with your Existing columns in the workshop so that you can lift things very easy. Or you can fixed the hand winch on the ground to pull some heavy things.
ALLMAN INDUSTRY specialized in providing winch equipment. We are highly experienced, get CE approved company. With more than 20-years rich experience, we have developed and produced high quality winches and hoists for different applications for international quality product and very best customers service for the very best price from ALLMAN.
ALLMAN INDUSTRY believes the “ Quality & Safety” of our products and services is the most important value of the whole company. We always insist on providing high quality and safety, easy operation and installation, less cost on working and maintenance to our Global customers. ALLMAN never sacrifices our quality principle for cost competition. Our concentration and long working experience have helped us become a professional supplier in winch and hoist filed.
Most of ALLMAN Products have the CE certificate and ALLMAN company now has got the ISO certificate. We can also provide the COO of the manual winch, so you don't need to worry about certification issues.
Exhibition:
As a company with over 20 years of experience, we have participated in many different domestic and international exhibitions, where we have met many like-minded friends. Our business now extends globally.

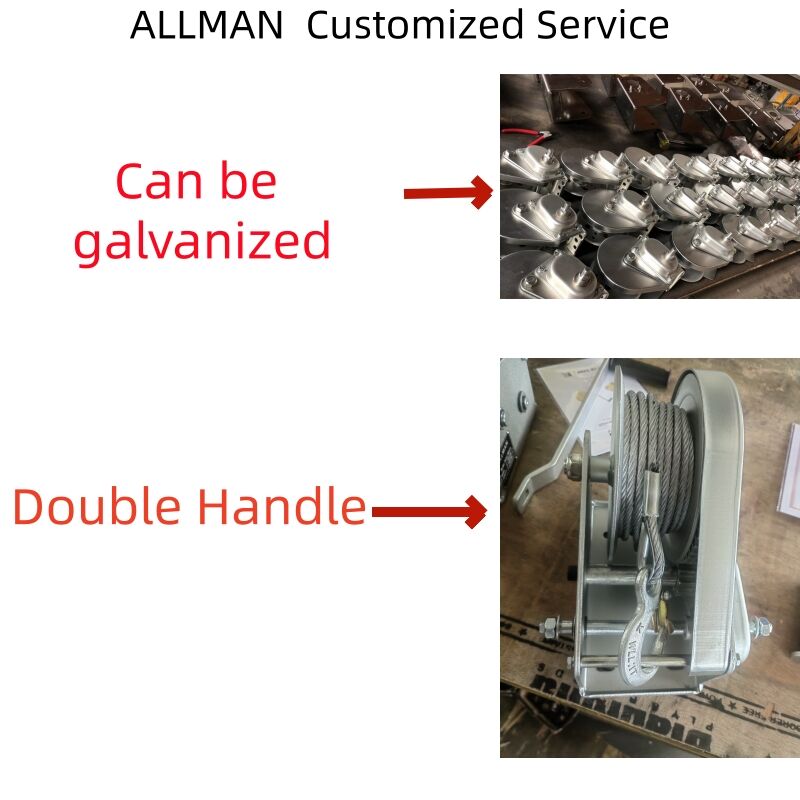

Q：Can you provide OEM service?
A：Yes.For ALLMAN manual winch you can make your own brand, your own color of the if you want.
Q：Min order quantity of the Brake Hand Winch：
A：1 unit is acceptable.
Q：Load time
A：For sample order we can finish the production of the manual winch in 5-7 days. For big order, we will finish the production in about 30 days. If your quantity of the hand winch is very big, we need to talk.
Q：Shipping methods of the manual hand winch?
A：By Air or By Sea. The nearest port to us is Shanghai.
Q：How to purchase the manual hand winch?
A：You can contact our sales via WhatsApp or Email.
Q：What is the payment methods?
A：TT, L/C and Paypal.
Q：Can you provide the sample?
A：Sure, we can provide you the sample for free . We will return the sample fee to you in your bulk order.
Q：How to deliver to foreign buyers？
A：For samples, customers can choose whether to ship by sea or by air. For full container orders, sea shipping is the best choice.
Q：Are you a factory or a trader?
A：We have our own factory, but in order to better connect with international trade business, we have also formed an international trade team. Welcome to visit our factory
