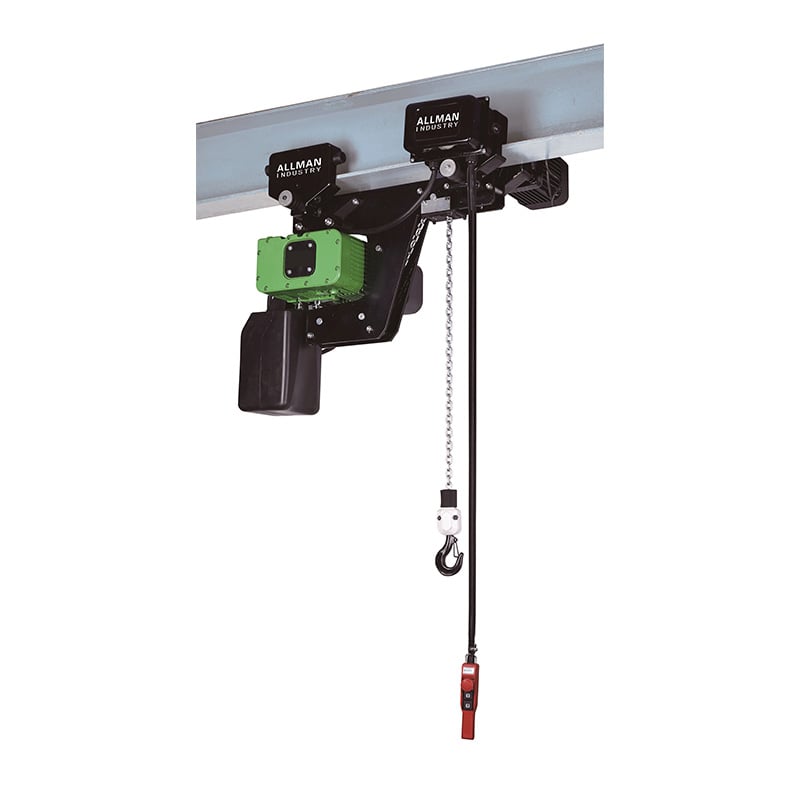

ALLMAN AMS Low Headroom Electric Chain Hoist M5 0.5-5 Ton for Low Ceiling Warehouses & Tight Areas

What is a Low-Headroom Electric Chain Hoist? Why Do You Need One?

In environments with limited plant height or tight overhead clearance, traditional electric hoists—due to their bulky structural design—occupy a significant amount of vertical space, resulting in a drastically reduced actual lifting height.

The ALLMAN AMS Low-Headroom Series addresses this issue by optimizing the connection structure between the hoist body and the trolley, thereby substantially reducing the overall height of the unit. At the same track height, the AMS Low-Headroom Hoist provides you with an additional 15–30 cm of effective lifting space—allowing you to easily lift taller equipment or cargo without the need for facility renovations or track elevation.

Typical Application Scenarios:

Renovation of older facilities (where height is restricted)

Lifting operations inside shipping containers

Workshops or bridge crane systems with insufficient headroom

Warehouse mezzanines or attic areas

The Value the AMS Series Delivers:

✅ Reliability: 100% load tested prior to shipment

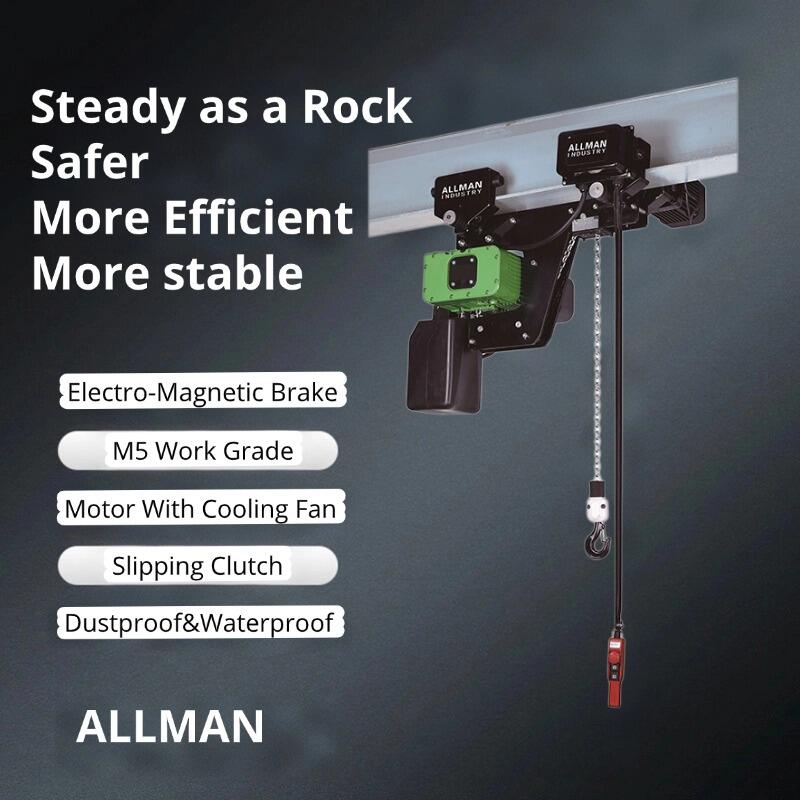

✅ Safety: Overload protection + Electromagnetic braking system

✅ Durability: Grade 80 alloy steel chain + Pure copper motor + Cooling fan

✅ Peace of Mind: 1-year warranty

What You Get with the AMS Series

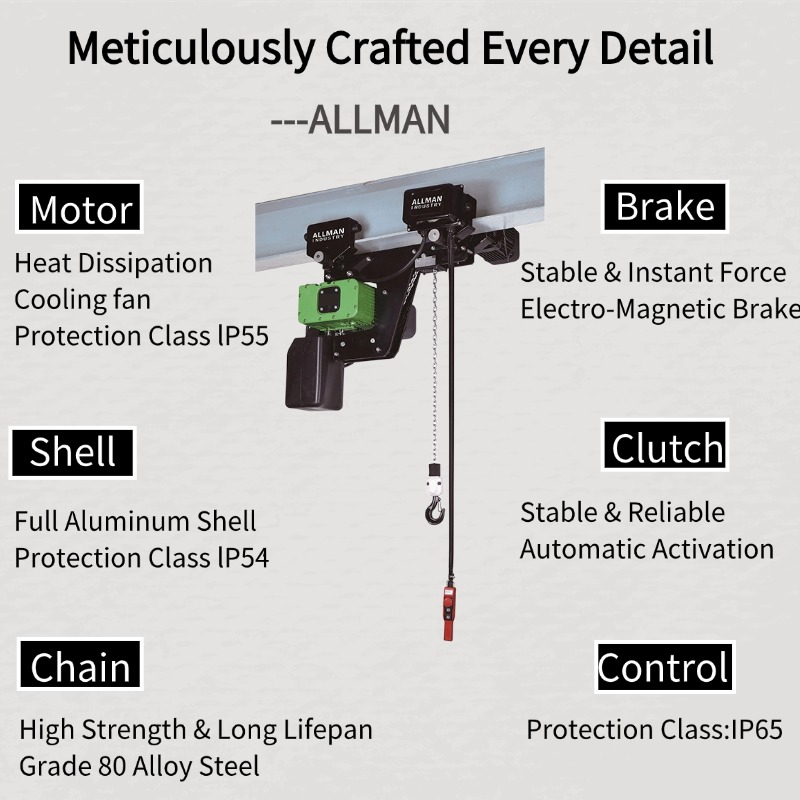

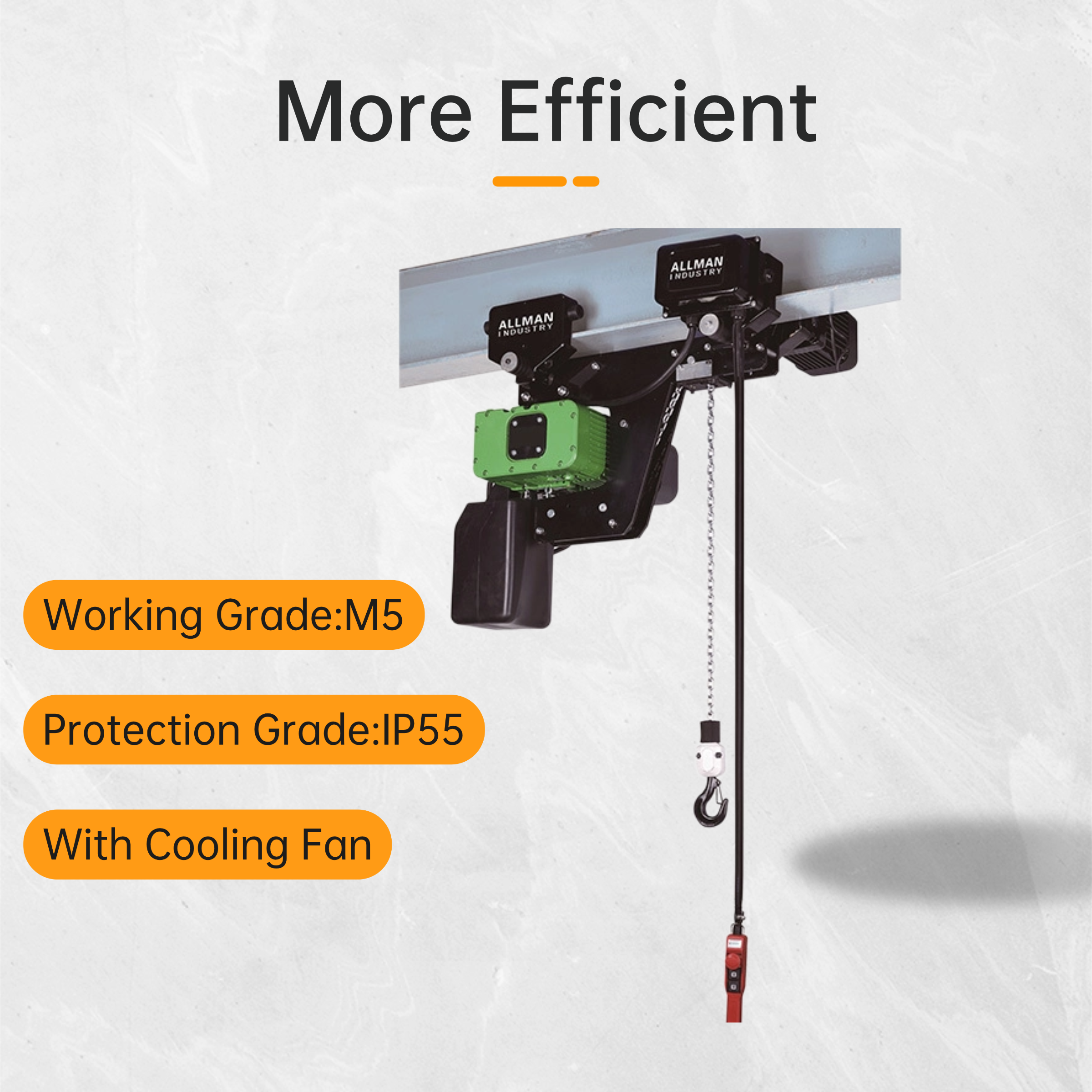

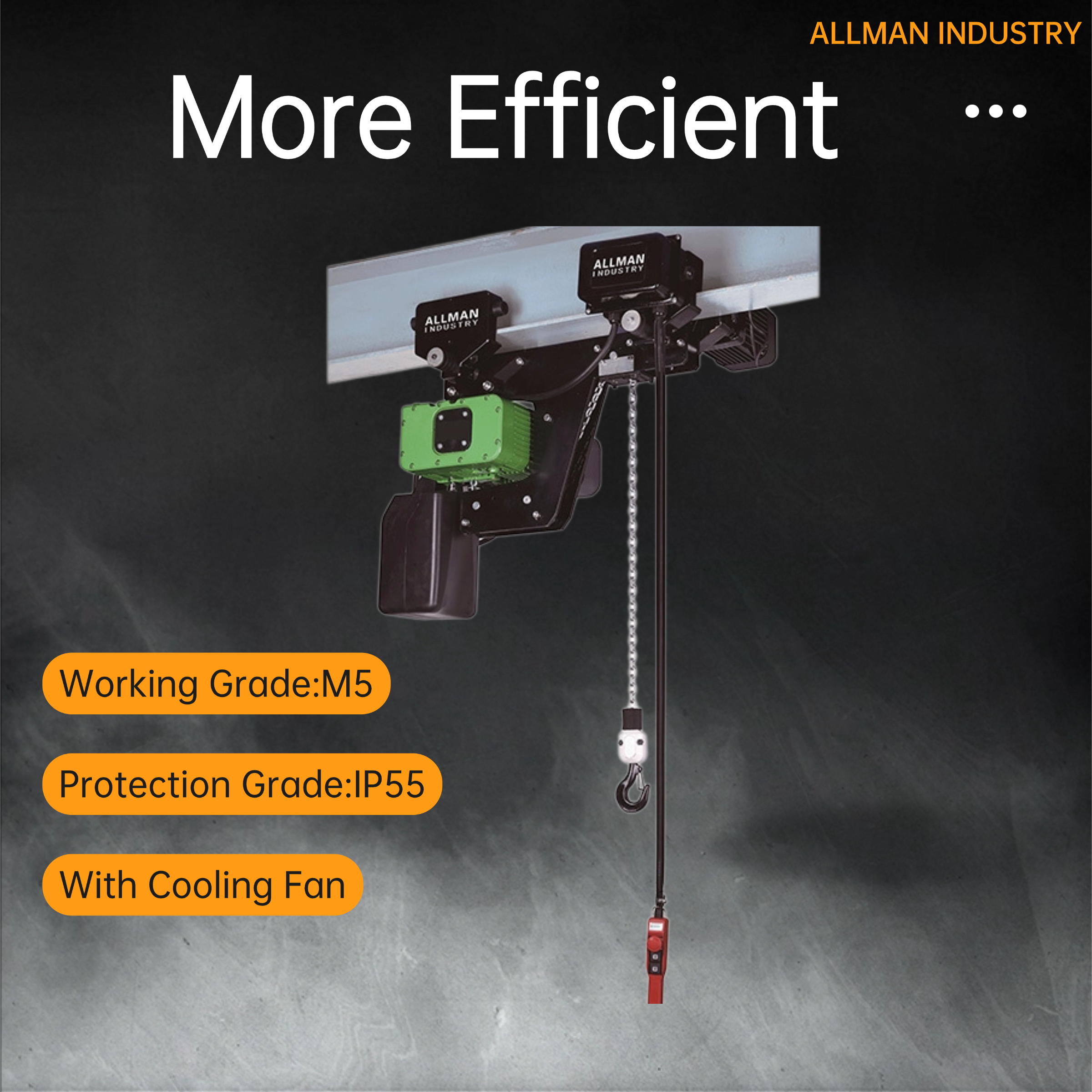

First, the core drive of the AMS electric chain hoist comes from its high-performance motor, featuring excellent heat dissipation design (equipped with a cooling fan) and Class F insulation, along with an IP55 protection rating, making electric chain hoist resistant to dusty and humid environments.

Second, safety goes beyond just load capacity. The AMS series electric chain hoist incorporates a slip clutch that automatically activates in case of overload, effectively protecting the electric chain hoist from accidental damage. Simultaneously, the high-sensitivity limit switch features a new button design, maximizing the use of lifting space and providing reliable position protection for both vertical and horizontal travel.

Third, robust design. The electric chain hoist adopts a European compact design with an all-aluminum alloy shell, achieving lightweight construction while ensuring the overall frame's robustness and a high IP54 protection rating. The chain box of electric chain hoist uses a low-exposure design and hard materials, effectively reducing the ingress of dust and moisture, ensuring electric chain hoist long-term clean operation of the internal mechanisms.

Fourth, the electric chain hoist of load chain is made of 80-grade high-strength alloy steel, providing excellent wear resistance and an ultra-long lifespan, and is available in black and galvanized finishes to suit different environments. The circuit and control system features a simple and clear layout, employs high-quality electronic components, and is equipped with an ergonomically designed IP65-rated high-protection hanging button box, ensuring both safe and convenient operation.

"Why Choose ALLMAN?" — Our Story

"Twenty years ago, we started as a small factory, focused on a single mission: making lifting operations safer and more efficient.

Today, our products reach across Asia, Europe, the Americas, and Africa. Yet, we remain steadfast in our commitment:

* Every electric hoist undergoes a 100% load test before leaving our factory.

* Every customer enjoys a 1-year warranty plus lifetime technical support.

It is not because we have grown big, but because we have endured."

What Our Customers Say

1."Great experience working with ALLMAN INDUSTRY. From the initial inquiry to after-sales support, everything was handled professionally. The product arrived on time and works perfectly. Will order again!"

—Customer from Colombia.

2.We run our AMS-5T for 8 hours a day, 5 days a week. One year, zero failures. That's reliability.

— Customer from Canada.

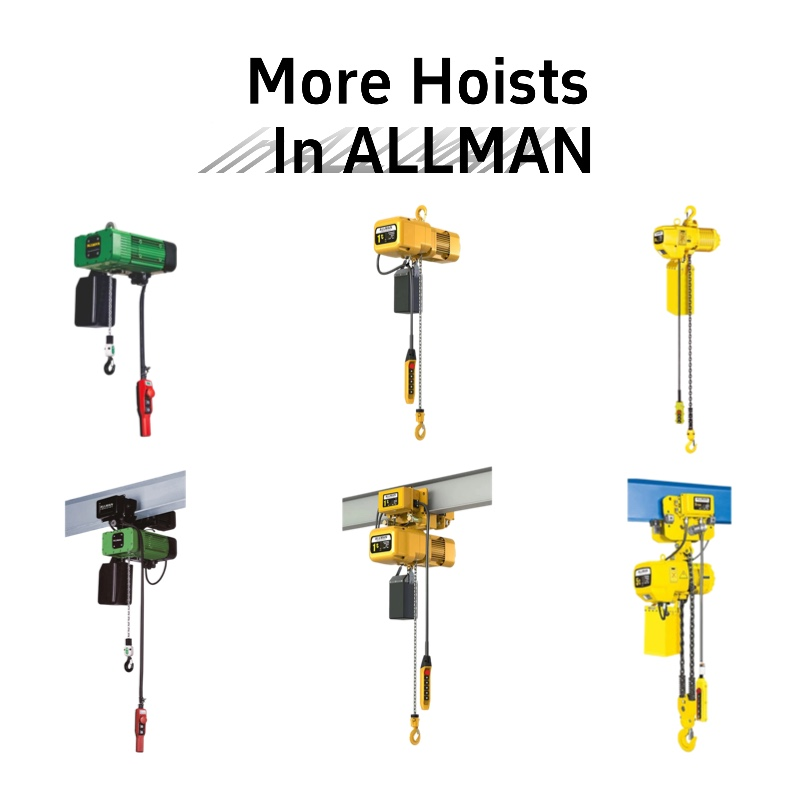

More choices

"Not sure what you need? Just ask. We're here to help."

Email: [email protected]
WeChat / WhatsApp: +86 13817585870
Website: www.allmanindustry.com

1, Q: Are you manufacturer or trade company?

A : We are a professional manufacturer of electric chain hoist . At the same time , we are also a trustworthy supplier of other manual operated lifting equipment and material handing equipment ,including hand chain hoist , lever hoist , hand pushed beam trolley , geared trolley , wire rope pulling hoist , hand winch , lifting magnets, crane scales , cranes and crane components and so on .

Q2: Do you accept small quantity customization? For example, just 1 unit?

A: Yes. The AMS series has a minimum order quantity of 1 unit. Whether for sample testing or a single unit, we welcome your order. Bulk orders offer better pricing, but single units are also fine.

3, Q: What’s your electric chain hoist ’s quality guarantee?

A: “Quality is life “ . Almost of our electric chain hoist have CE certificate , all the electric chain hoist are designed and manufactured according to the international standard . Different type electric chain hoist meet different quality standard . All the electric chain hoist will be strictly tested and inspected before shipping . And we will be responsible for any quality problem .

4, Q:How long is the lead time for one unit electric chain hoist ?

A : Samples orders with small quantity electric chain hoist within 7 days . Bulk order around 15 days .

Q5: Can the electric hoist be used outdoors?

A: Yes. The AMS series has an IP54 rating, making it dust-resistant and rainproof. However, please note:

Avoid prolonged immersion in water

Consider adding a rain cover for extended outdoor use

Avoid use in extreme weather (typhoons, heavy storms)

*For higher protection (IP55/IP65), please contact us for custom options.

Q6: What if the chain rusts? Does it need to be replaced?

A:Light rust: Clean with rust remover and apply lubricating oil

Heavy rust or wear: Replacement is recommended. If chain wear exceeds 10% of original diameter, replacement is mandatory

We offer original chain parts for purchase. Regular maintenance significantly extends chain life.
