Place of Origin: |
Jiangsu nantong |
Brand Name: |
ALLMAN |
Model Number: |
AMGW |
Certification: |
CE,ISO |
Minimum Order Quantity: |
1 |
Delivery Time: |
5 |
Payment Terms: |
T/T |
Born for every work site

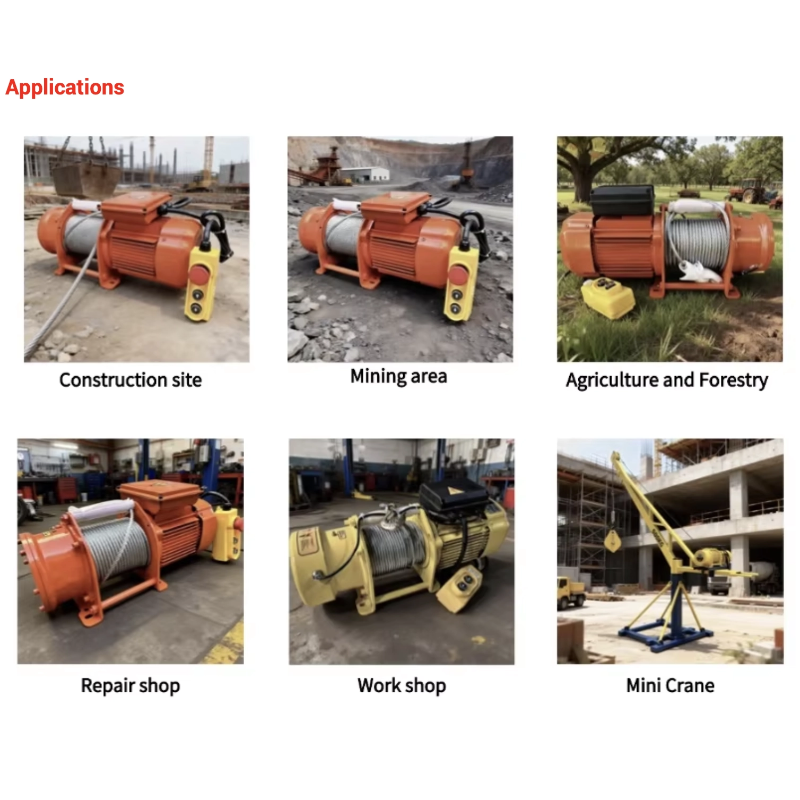

"In a cramped repair shop, a piece of equipment needs precise positioning; on a noisy construction site, heavy objects need safe hoisting—this is the reason AMGW was born."
When designing the AMGW series of electric winches, we didn't think about specifications, but about every work situation you face. It's compact enough to be easily carried, yet powerful enough to handle heavy-duty challenges. It's not just a tool, but your reliable "third hand."

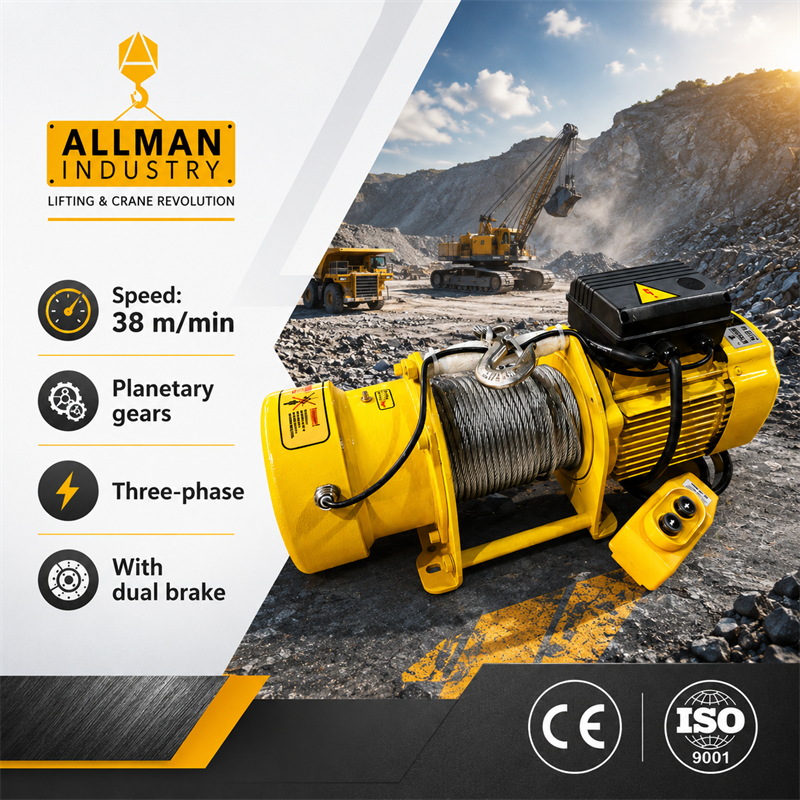

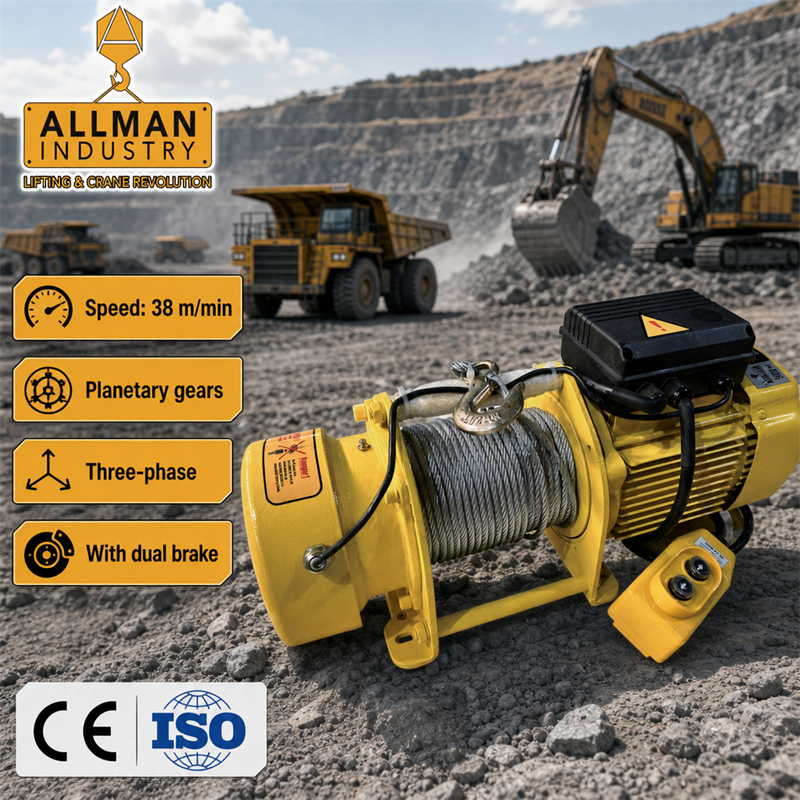

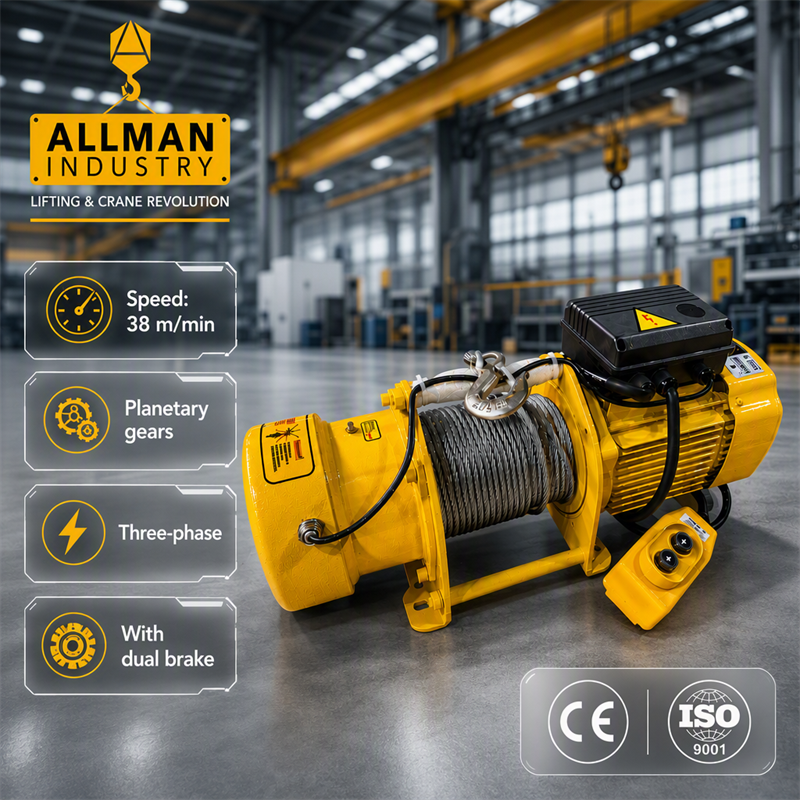

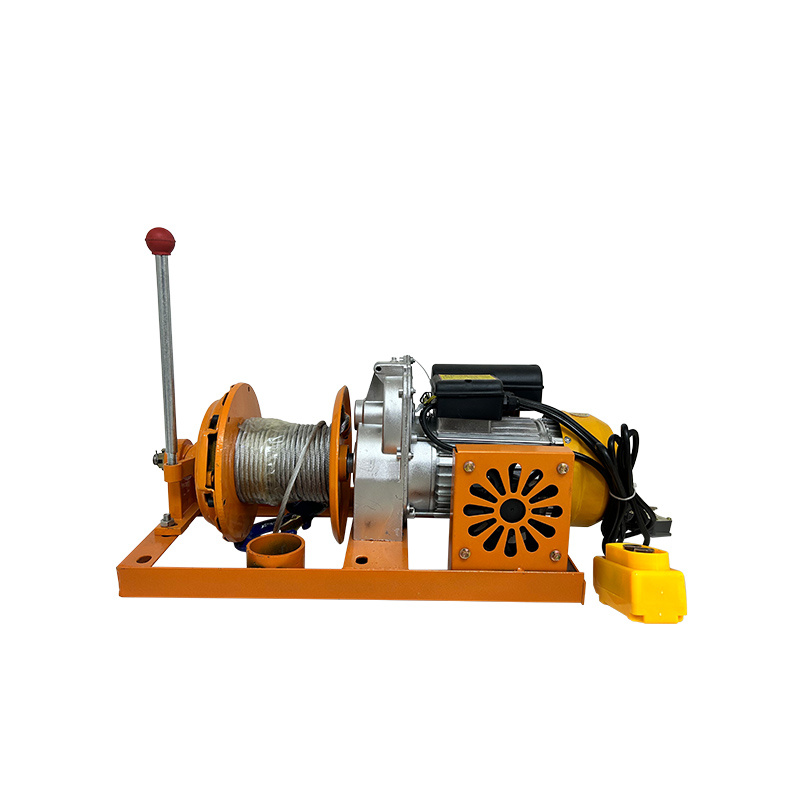

ALLMAN AMGW series electric winches are widely recognized for their compact and portable electric winch design. This streamlined structure results in a lightweight build, making this portable electric winch easy to transport and install on-site.
Equipped with a cooling fan on the motor housing, this portable electric winch offers superior heat dissipation during operation, enabling longer working cycles. Designed for versatility, the AMGW portable electric winch can both lift and pull heavy loads according to actual requirements.
Incorporating mature technology, universal parts, and a robust structure, this portable electric winch delivers stable and reliable performance across a wide range of applications. Users can handle various tasks more efficiently and safely with this portable electric winch.
Choose ALLMAN for a dependable lifting and pulling solution that adapts to your needs—a true portable electric winch you can rely on.
Why Two Brakes?
Most electric winches have only one brake. If it fails, the load drops.
The AMGW has two:
Electromagnetic Brake – Stops instantly when power is cut
Mechanical Brake – Engages automatically if power fails
Two independent systems. One goal: keeping your load safe, every time.

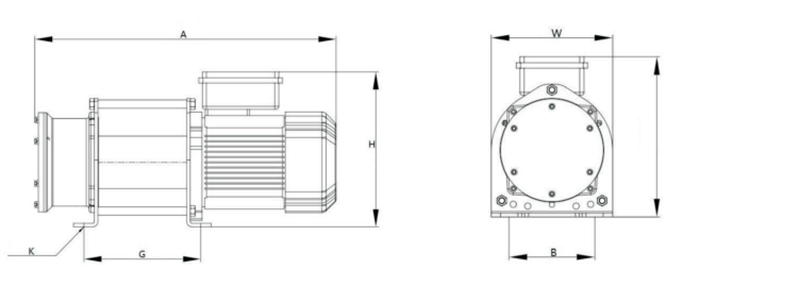

| Model | AMGW 300 | AMGW 500‑M | AMGW 500‑L | Basic Dimensions (mm) | AMGW 300 | AMGW 500‑M | AMGW 500‑L |
| Rope Reeving | Single | Single | Single | A | 576 | 576 | 735 |
| Rate Capacity(kg) | 300kg | 500kg | 500kg | B | 140 | 140 | 140 |
| Working Speed (m/min) | 28~32 | 28~32 | 28~32 | W | 201 | 201 | 201 |
| Rope Length(m) | 0‑50 | 0‑50 | 51‑100 | H | 265 | 265 | 265 |
| Rope Diameter (mm) | 5 mm | 6 mm | 6 mm | G | 210 | 210 | 369 |
| Motor Power(kw/hp) | 1.5kw(2.0hp) | 2.2kw(2.99hp) | 2.2kw(2.99hp) | K | 4‑Ø10.5 | 4‑Ø10.5 | 4‑Ø10.5 |
| Power Supply | 220V‑440V, 50/60Hz, 3Ph / 220V‑240V, 50/60Hz, 1Ph | ||||||

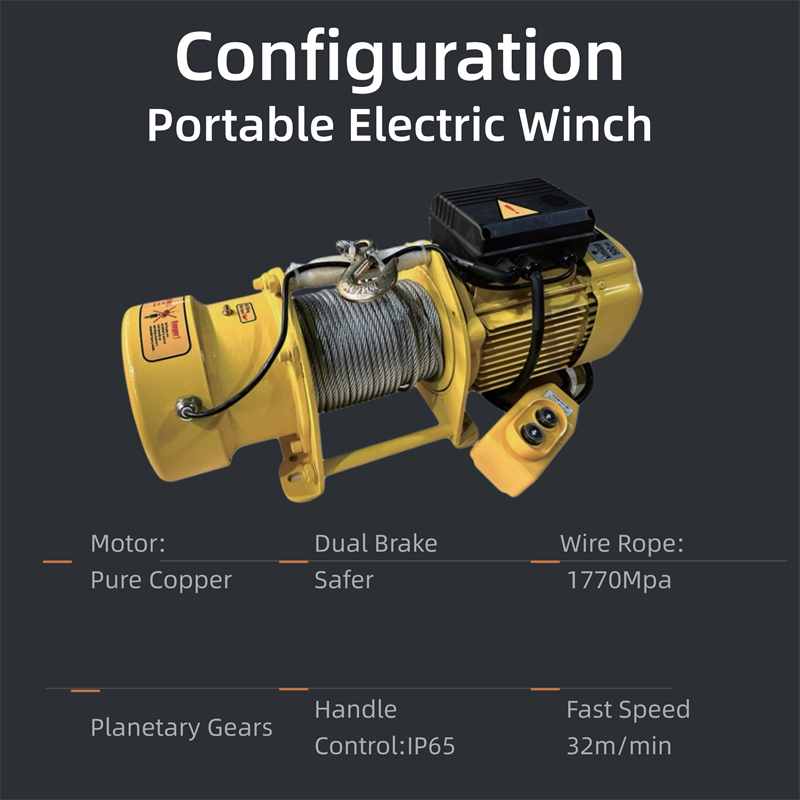

1. High-Speed Operation
Tested performance: up to 32 m/min at 50Hz and 38 m/min at 60Hz, ensuring efficient workflow.
2. Flexible Power Options
Available in both single-phase ( home use) and three-phase configurations to suit various power supply conditions.

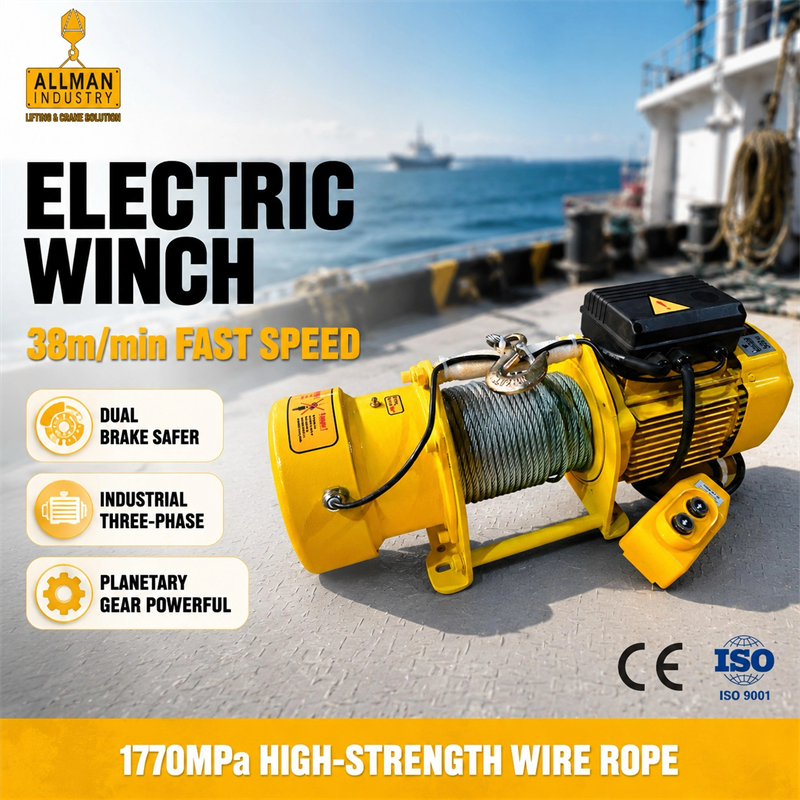

3. High-Strength Wire Rope
Constructed with 1770MPa grade steel wire rope, delivering superior strength and safety margin.
4. Enhanced Safety – Dual Brake System
Equipped with both electromagnetic and mechanical brakes, providing reliable stopping power and fail-safe operation.
5. Extended Durability
High wear and fatigue resistance significantly extends service life, reducing the frequency and cost of rope replacements.
6. Compact & Efficient Design
The high-strength wire rope allows for a thinner, lighter rope profile, enabling a more compact winch design, larger rope capacity, and improved work efficiency.

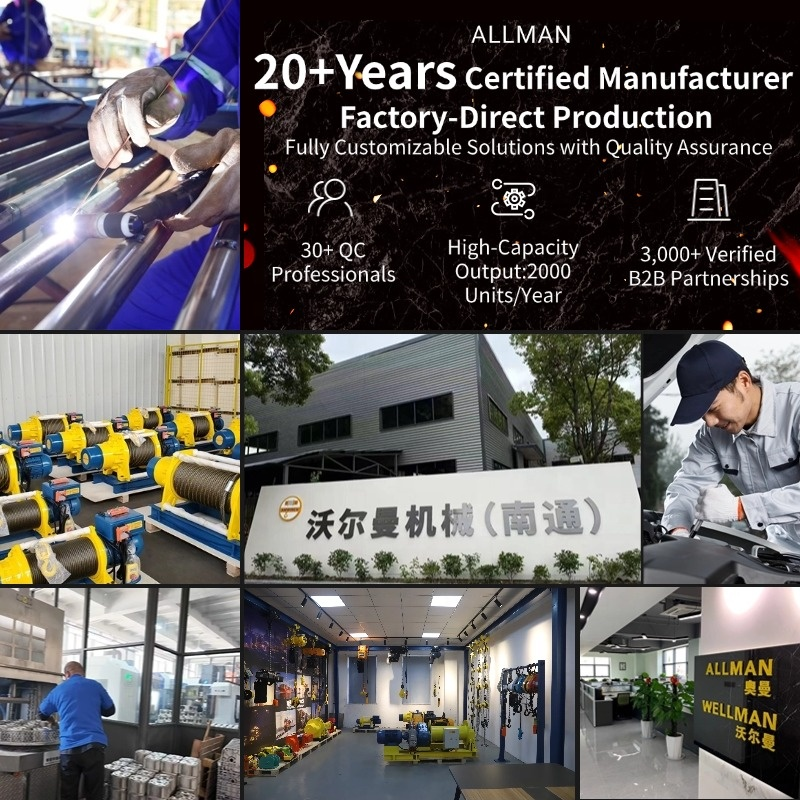

Manufacturing Excellence
With over 20 years of experience, ALLMAN Industrial has established itself as a leading portable electric winch manufacturer. Our state-of-the-art factory spans over 6,600 square meters, equipped with advanced production lines dedicated to portable electric winch manufacturing, and a dedicated quality control team of more than 30 professionals who oversee every stage of portable electric winch production.
Global Recognition
From Asia to Europe, the Americas to Africa, ALLMAN portable electric winches have earned global recognition for their durability, safety, and innovative design. With a network of over 3,000 B2B partners worldwide, we have ranked first in export sales of portable electric winches for five consecutive years – a testament to the trust our customers place in our portable electric winch solutions.
Certifications & Quality Assurance
ALLMAN INDUSTRY brings over 20 years of experience to electric winch design and production. Every winch we manufacture is CE certified, and our facilities maintain ISO certification – demonstrating our commitment to excellence.
We believe that "Quality and Safety" are the core values that define our company. Each electric winch undergoes rigorous testing before shipment to ensure compliance with international standards.
One-stop transportation service
If your project is urgent, we also offer the following shipping methods.
From packaging to shipping, we strictly control.
Quick Answers to Your Questions
MOQ? 1 unit.
Delivery time? 7 days for sample orders.
Warranty? 1 year, lifetime technical support.

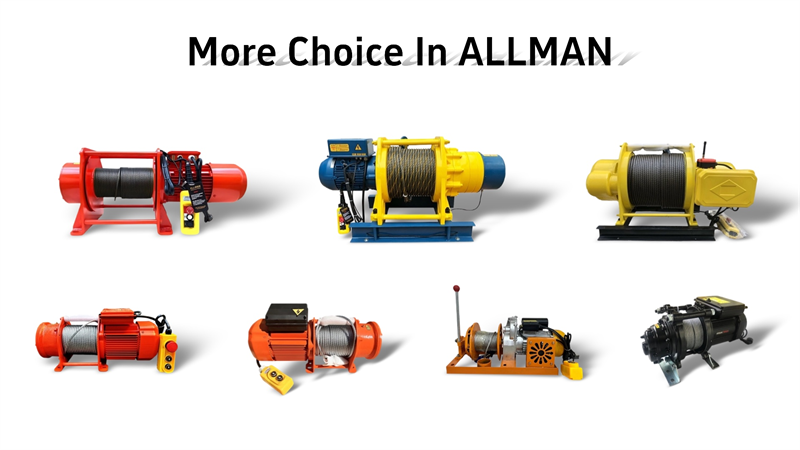

More Choose
1, Q: Are you manufacturer or trade company?
A : We are a professional manufacturer of electric winches . At the same time , we are also a trustworthy supplier of other manual operated lifting equipment and material handing equipment ,including hand chain hoist , lever hoist , hand pushed beam trolley , geared trolley , wire rope pulling hoist , hand winch , lifting magnets, crane scales , cranes and crane components and so on .
2, Q: What is the MOQ ?
A:1 set
3, Q: What’s your quality guarantee?
A: “Quality is life “ . Almost of our electric winches have CE certificate , all the electric winches are designed and manufactured according to the international standard . Different products meet different quality standard . All the electric winches will be strictly tested and inspected before shipping . And we will be responsible for any quality problem .
4, Q:How long is the lead time for one unit electric winch ?
A : Samples orders with small quantity within 7 days . Bulk order around 15 days .
5, Q: Which is the nearest sea port for you ?
A : Shanghai Port is the nearest port for us . But we can delivery the electric winches to any port as your request .
6, Q: What advantages we have?
A: Rich experience: We have over 20 years experience in exporting electric winch and lifting equipment , all of our sales have been in lifting industry over 10 years . We have our own experienced engineers in R&D , we keep improving the products quality level , design new and economic electric winch ,hand winch to meet our customers’ different requirement . We have our own factory , so that , no matter the electric winches which manufactured by ourselves , but also other related lifting and handling equipment we get from our partners . All electric winches will be re-tested again in our factory .
7, Q:How about the after sale service for the electric winch ?
A: We promise 1 year guaranty, life-time technical support! We have a strong team special for after sale service. All your questions about electric winch you are asking will be solved by our sales and engineers .
8.Q: What is the advantage of the dual brake system on the AMGW electric winch?
A: The AMGW electric winch is equipped with both an electromagnetic brake and a mechanical brake. This dual system ensures instant stopping power and provides a fail-safe mechanism: even in the event of a power failure, the mechanical brake engages automatically, preventing uncontrolled load descent and significantly enhancing operational safety.
