ALLMAN CE Certified Industrial Electric Wire Rope Winch 3 Phase for Machinery Pulling

CE Certified | ISO9001 | 1-Year Warranty | Global Shipping

Introduction

Have you ever encountered such issues on your job site? An electric winch that starts making abnormal noises—or even stops working entirely—after just a few uses, causing significant delays to your operations?

ALLMAN’s heavy-duty electric planetary gear winch is engineered for demanding industrial applications, delivering consistent and reliable pulling and lifting power even in harsh environments. Equipped with a high-efficiency multi-stage planetary gearbox, a heavy-duty three-phase induction motor, and an automatic fail-safe braking system, it offers smooth speed control, low noise levels, and superior mechanical safety.

Whether for construction sites, mining operations, or marine loading and unloading, this winch can be fully customized to meet your specific requirements regarding load capacity, wire rope length, and electrical specifications compatible with local power grids.

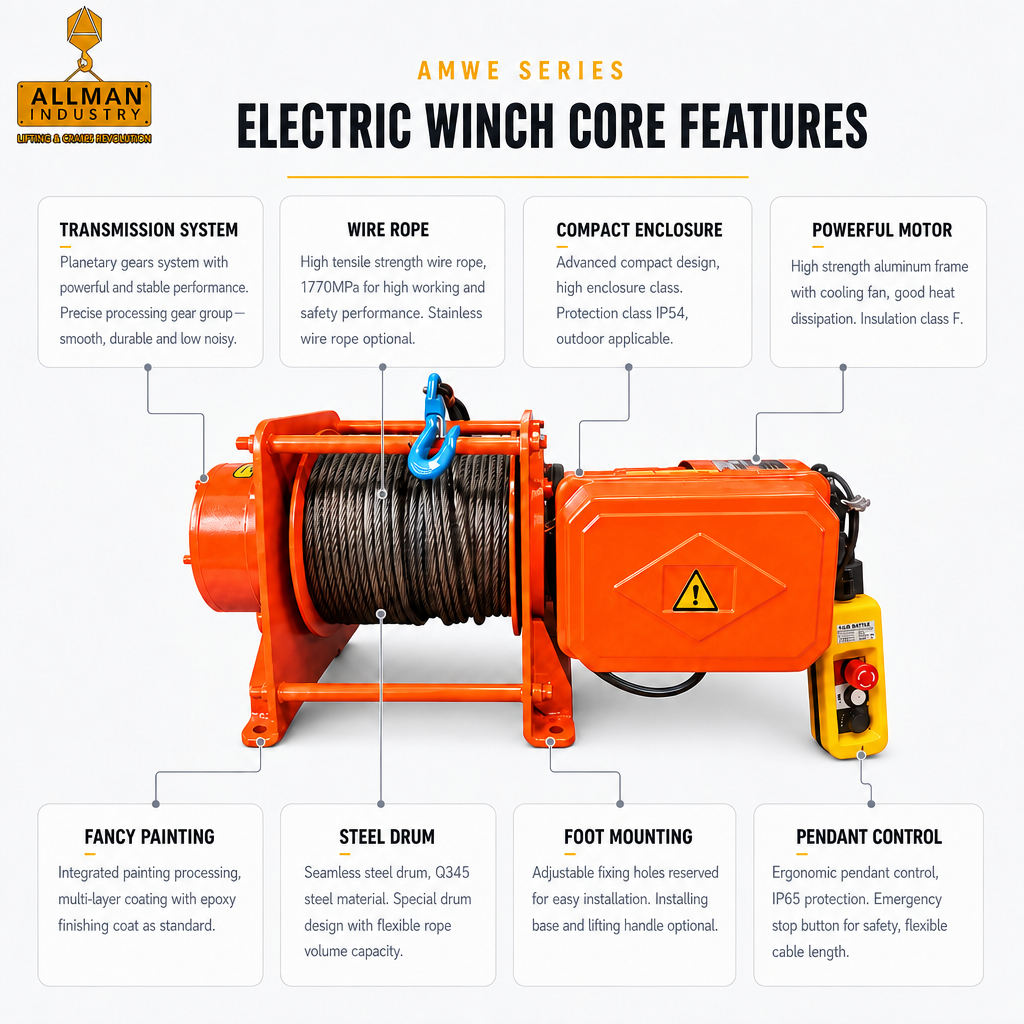

Product Details

• High-Torque Planetary Gearbox

Compact planetary structure delivers high transmission efficiency, superior load balancing, and smooth torque output under continuous heavy-duty duty cycles.

• Heavy-Duty 3-Phase Copper Motor

Equipped with IP54 dust and water-proof copper wire motor with Class F insulation. Supports regional voltage customization (220V / 380V / 415V / 440V / 480V, 50/60Hz).

• Fail-Safe Electromagnetic Disk Brake

Automatic mechanical braking engages instantly in case of power interruption or stop signal, ensuring 100% zero-slippage safety holding.

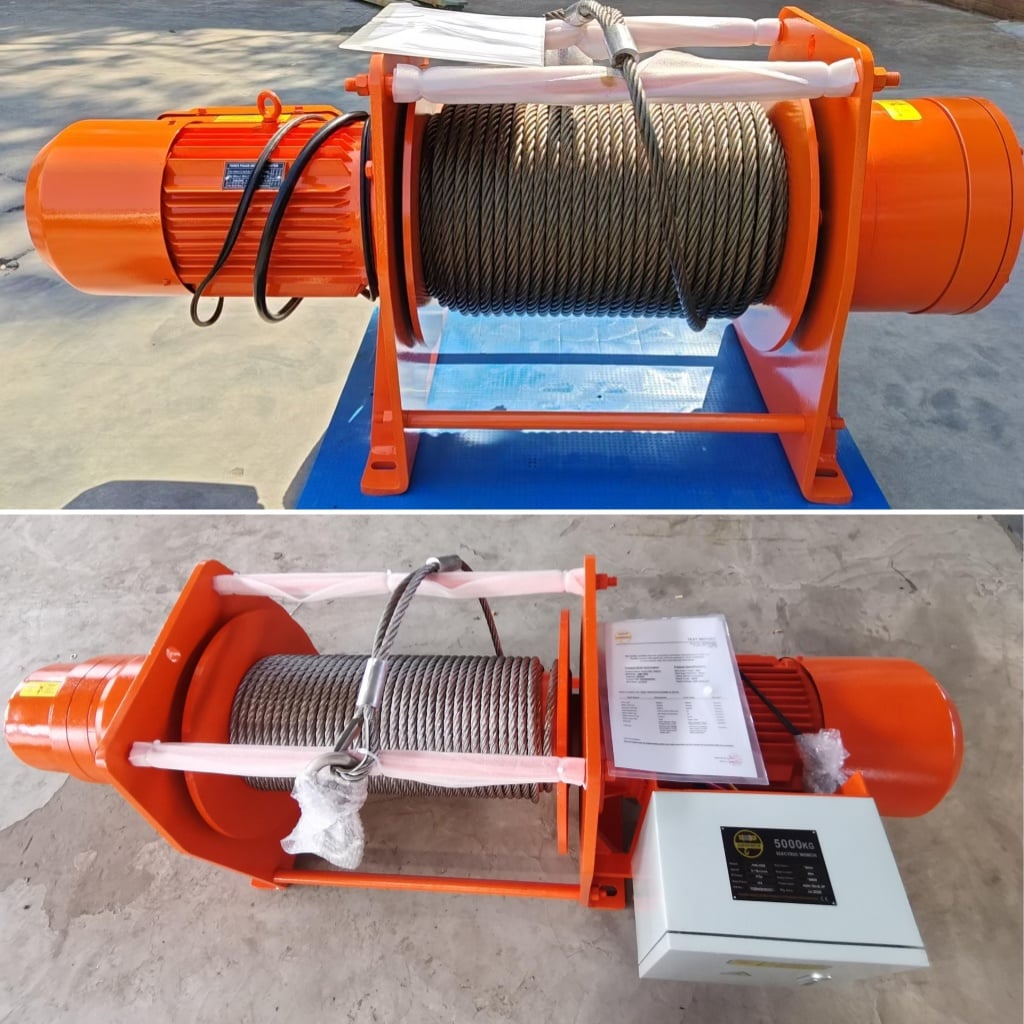

• Galvanized Steel Wire Rope & Safety Hook

Features high tensile strength aviation-grade steel wire rope with a heavy-duty drop-forged alloy hook equipped with a safety latch and 360° swivel function.

• Ergonomic Remote Control Station

Industrial-grade waterproof handheld pendant control switch (IP65) with an integrated emergency stop button. Wireless radio remote control is available as an option.

• Heavy Steel Mounting Frame

Precision welded and powder-coated steel frame with pre-drilled anchor bolt holes for rigid installation on concrete pads, steel girders, or mobile trailers.

三、 Specification

Parameter	Standard Specification	Customization & Options
Rated Load Capacity	0.5t~5t(5KN~50KN)	Heavy rigging custom
Lifting / Pulling Speed	8 – 25 m/min(Single speed)	Variable Speed Drive (VFD) / Dual speed
Wire Rope Drum Capacity	30 m – 300m	Custom drum width, grooved drum option
Wire Rope Diameter	Φ7mm – Φ18mm	Galvanized / Stainless Steel
Input Voltage	3-Phase 380V / 400V / 415V / 440V / 480V	Single-phase option for light models (It can be made with a maximum capacity of 1 ton)
Frequency	50Hz / 60Hz	Fully compatible with global power grids
Protection Rating	IP54 Motor	IP54 Motor
Control System	Wired Pendant Control Switch	Wireless Radio Remote / Control Cabinet

Application

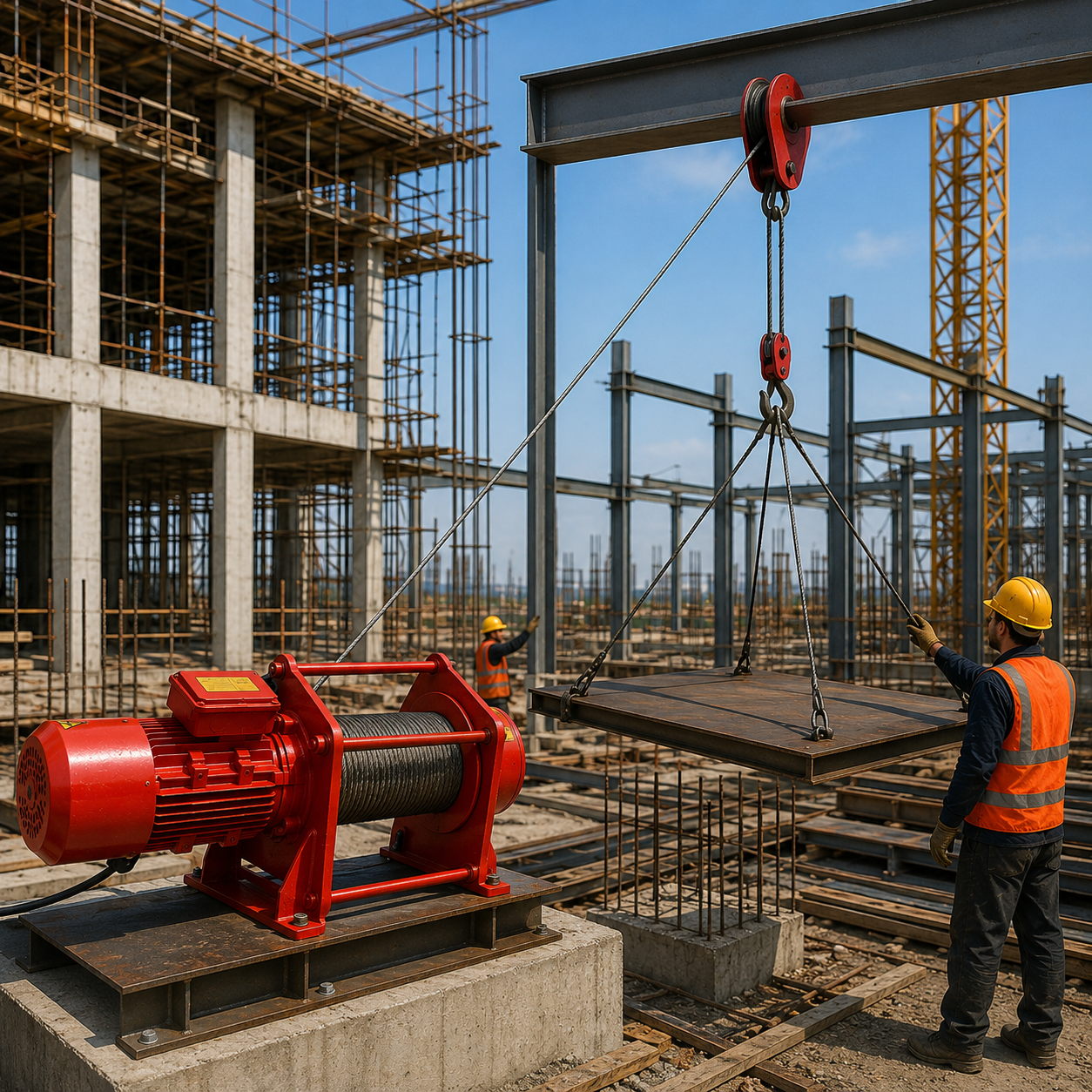

• Construction & Infrastructure:

Structural steel positioning, concrete element hoisting, and general site rigging.

• Mining & Heavy Industry:

Underground material hauling, slope drag pulling, and heavy equipment maintenance.

• Marine & Ports:

Ship mooring, boat ramp pulling, dockside cargo handling, and barge winch systems.

• Plant Machinery & Logistics:

Factory heavy machinery installation, mold moving, and railway wagon dragging.

Customization

As a direct industrial equipment manufacturer, we tailor winches to your exact project parameters:

1. Electrical Customization: Custom motors matching global industrial voltages (220V to 525V, 3 phase). Single-phase power options are also available upon request, with a maximum capacity of 1 ton.

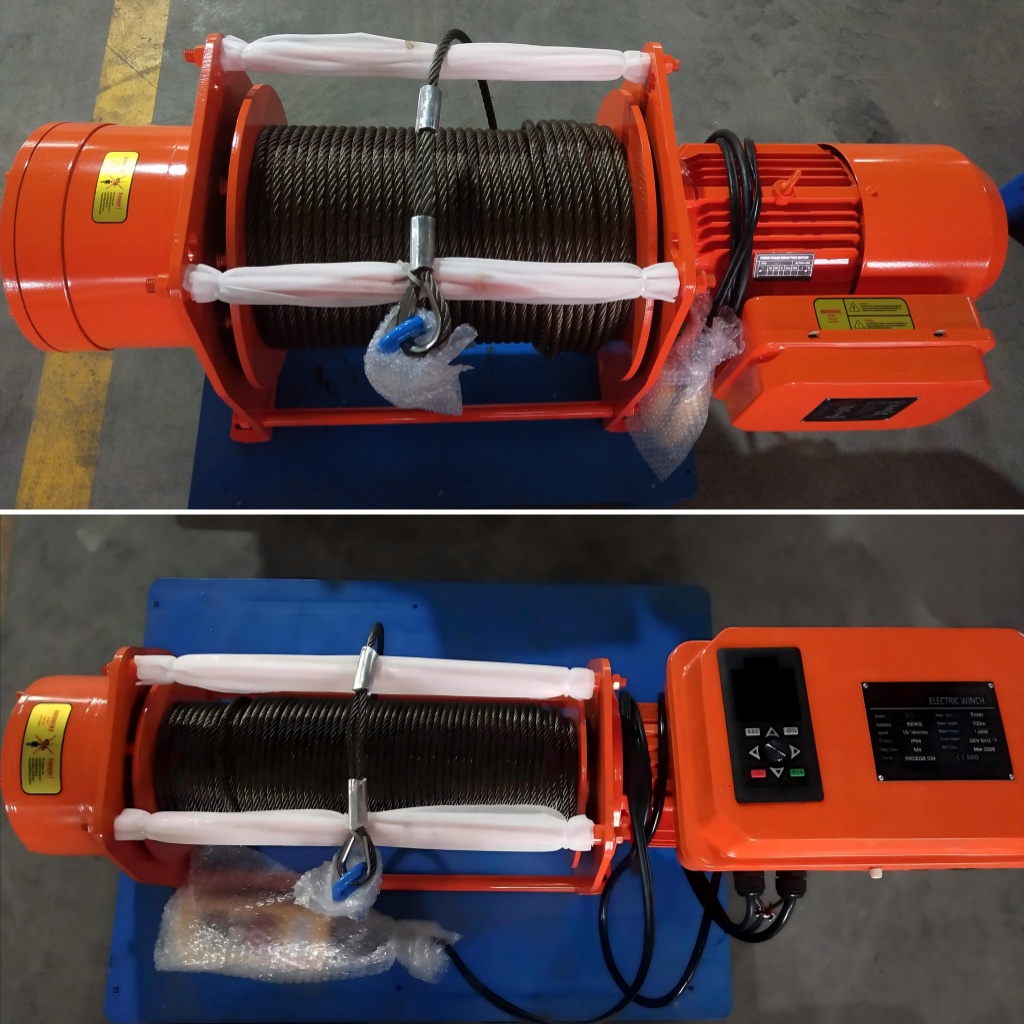

2. Control System Upgrades: Variable Frequency Drives (VFD) for precision inching and smooth speed adjustment.

3. Surface Finish & Branding: Custom anti-corrosion painting, custom colors, and OEM private labeling for distributors.

About Allman

ALLMAN INDUSTRY CO., LTD, based in Nantong, Jiangsu, China, is a specialized manufacturer of lifting and material handling equipment. Dedicated to the R&D, production, and export of high-quality lifting products, the company primarily offers electric chain hoists, electric winches, wire rope hoists, and various lifting accessories.

With over 20 years of experience in the lifting industry, ALLMAN has accumulated extensive technical expertise and manufacturing know-how. It has grown into one of China's leading suppliers with the most comprehensive product range in the sector, covering cranes, electric and manual hoists, winches, I-beam trolleys, lifting magnets, lifting clamps, load skates, chain slings, wire ropes, and other material handling equipment. These products are widely used in factory workshops, warehousing and logistics, mining and energy, and construction projects.

The company boasts experienced teams in R&D, production, and sales, with a monthly production capacity exceeding 500 electric winches and 1,500 electric hoists. ALLMAN holds international certifications such as ISO and CE; CE certificates, test reports, and user manuals are provided with shipments to meet market access requirements in Europe, the US, and across the globe.

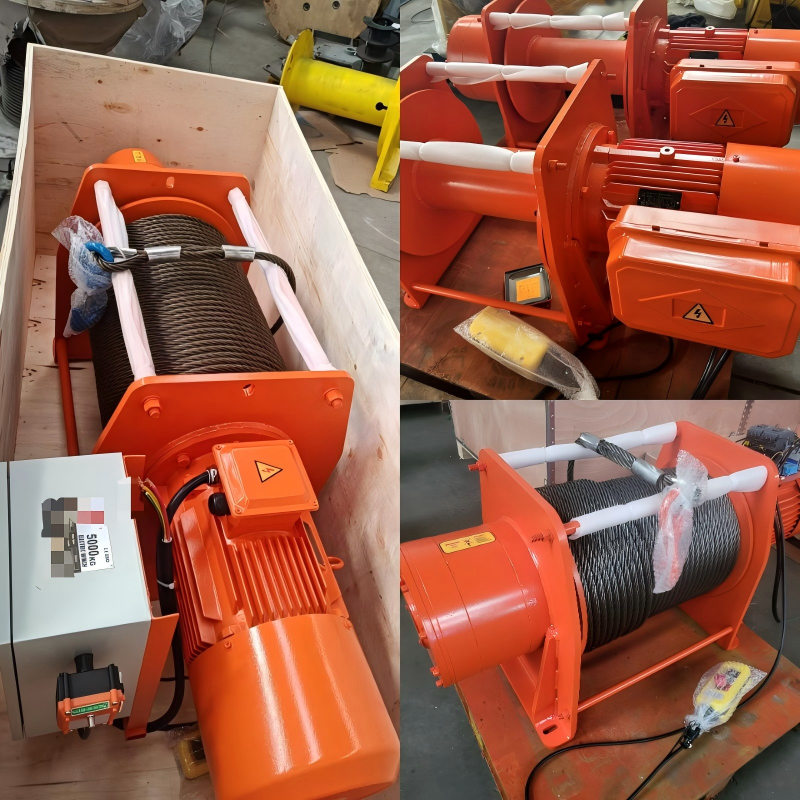

Guided by the philosophy "From Machines to Solutions," ALLMAN offers customized configurations—such as specific tonnage, lifting height, voltage, control methods, and branding—tailored to the customer's operating environment. The company provides a one-stop service encompassing solution design, manufacturing, wooden crate packaging, and global shipping, with products exported to numerous countries and regions worldwide. Driven by the vision "ALLMAN LIFT, LIFT GLOBAL," the company is committed to delivering efficient, safe, and reliable lifting solutions to customers around the world through its superior product quality and comprehensive service.

FAQ

1, Q: Do your electric winches have CE certification?

A: Yes. Most of our electric winches can be supplied with CE certification. Other certifications and test reports are available depending on the destination market and project requirements.

Please let us know your market so we can provide the appropriate documentation.

2, Q: Can the electric winch be used for lifting?

A: Some electric winches are designed for lifting, while others are intended only for pulling or towing.

The correct model depends on your application and local safety requirements. Please tell us how you intend to use the winch, and we will recommend the appropriate solution.

3, Q: Can the rope length be customized?

A: Yes. Wire rope length and diameter can be customized according to your requirements.

We can also calculate the suitable drum capacity based on your required rope length.

4, Q: Is the electric winch suitable for outdoor use?

A: Yes. Our winches can be equipped with weather-resistant components and appropriate IP protection for outdoor applications.

For marine, construction, or harsh environments, we can recommend suitable configurations.

5, Q: Can I order one sample first?

A: Yes. Sample orders are welcome for quality evaluation before bulk purchasing.

6, Q: Can you print our logo?

A: Yes. OEM branding is available, including logos, nameplates, packaging, user manuals, and product labels.

7, Q: How do you ensure product quality?

A: Every electric winch undergoes strict quality inspections before shipment, including load testing, brake performance verification, electrical checks, and operational testing to ensure reliable performance.

8, Q: Can I become your distributor?

A: Yes. We welcome distributors, wholesalers, and OEM partners worldwide. We can provide competitive pricing, stable quality, technical support, and long-term cooperation for qualified partners.

9, Q: What is the difference between an electric winch and an electric hoist?

A: Although both machines are used to move heavy loads, they serve different purposes.

An electric winch is mainly designed for pulling or winding loads horizontally or on an incline, while an electric hoist is specifically designed for vertical lifting. Electric hoists are equipped with lifting safety features, whereas winches are selected based on pulling force, rope capacity, and application requirements.

If you are unsure which equipment is suitable for your project, our engineers can help you choose the right solution.

10, Q: What is the duty cycle of an electric winch?

A: Duty cycle refers to how long a winch can operate within a specific period without overheating.

For example, a 40% duty cycle means the winch can run for 4 minutes within every 10-minute period.

The appropriate duty cycle depends on the frequency of use and application environment.
