Why Upgrade Your 5-Ton AMWE Electric Winch with Wireless Remote Control?

Introduction

In heavy lifting and pulling operations, safety and precision are paramount. Electric winches heavy duty type remain the backbone of material handling across construction sites, mining facilities, ports, and manufacturing plants. Among these, the AMWE 5-Ton (5,000 kg) electric winch is widely recognized for its robust construction, high torque output, and long-term durability.

However, traditional wired pendant controls often limit operator mobility and expose workers to potential hazards near heavy loads. Upgrading your AMWE electric winch with an industrial wireless remote control system transforms how heavy-duty hoisting and pulling tasks are performed.

Key Advantages of Wireless Remote Control on Industrial Winches

1. Enhanced Job-Site Safety

Working close to a 5-ton load under tension carries inherent risks. A wireless transmitter allows the operator to stand outside the danger zone—far away from snapping cables, falling debris, or pinch points—while maintaining clear visual contact with the load.

2. Maximum Operational Flexibility

Wired control pendants limit the operator’s range to the length of the cable. With a wireless remote control (offering operational ranges up to 100 meters or more), the operator can move freely around the work site, inspect load clearance from multiple angles, and coordinate easily with signal personnel.

3. Boosted Productivity & Reduced Labor Costs

Wireless operation often converts a multi-person job into a streamlined single-operator task. The operator can hook up the load, step back to a optimal vantage point, and execute the lift or pull without needing an assistant to hold a tethered switch.

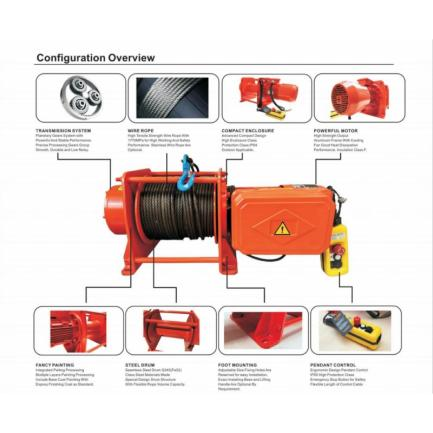

Technical Highlights of the AMWE 5-Ton Electric Winch

When paired with a wireless control package, the 5000 kg AMWE series winch delivers exceptional performance tailored to demanding commercial environments:

1. High-Torque Heavy-Duty Motor: Equipped with a high-efficiency industrial motor featuring IP55 protection, cooling fans, and thermal overload protection to handle prolonged continuous operation.

2. Precision Wire Rope Drum: Built with heavy-gauge steel and precision grooves to ensure smooth, uniform wire rope spooling, reducing cable wear and preventing overlapping.

3. Integrated Control Box: A compact, dustproof, and splash-resistant enclosure neatly houses the wireless receiver module, contactors, and electrical protection components for reliable signal transmission.

4. Fail-safe Electromagnetic Braking System: Provides immediate holding power the moment the control button is released or in the event of power loss, eliminating load drift.

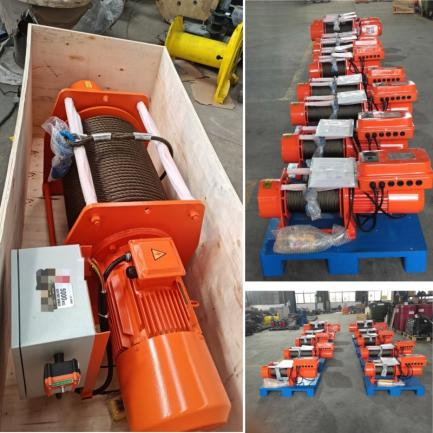

5. Reinforced Steel Frame & Packaging: Designed with structural channel steel legs and lifting lugs, built for rigid mounting, and packed in export-standard wooden crates for damage-free international transport.

How to Choose the Right Wireless Winch System for Your Project

1. Working Load Limit (WLL): Ensure the 5,000 kg capacity aligns with your peak working load requirements (factoring in safety coefficients).

2. Drum Wire Rope Capacity: Calculate the exact rope length and diameter required for your lifting height or pulling distance.

3. Power Supply Compatibility: Standard industrial voltage options (e.g., 380V/415V/440V, 3-Phase, 50Hz/60Hz) to match your local grid or generator setup.

4. Wireless Frequency & Interference Protection: Select industrial-grade radio controls featuring unique encryption codes to prevent cross-talk on crowded job sites.

Conclusion & Custom Solutions

Equipping an AMWE 5-Ton Electric Winch with an industrial wireless remote control is one of the most effective investments you can make to increase job-site safety, shorten operational cycles, and reduce labor overhead.

Looking for customized winch configurations, specific wire rope capacities, or tailored voltage options? Contact us freely today to get a free technical consultation and factory-direct quote for your next project.

FAQ

Q1: What is the control distance of the wireless remote controller?

A1: Standard industrial wireless remotes for AMWE winches typically provide an effective operating range of up to 100 meters (328 feet) in open space. The system uses anti-interference signal channels to ensure stable control even on busy industrial sites.

Q2: Does the wireless remote winch still include a manual/wired backup switch?

A2: Yes. For safety and compliance, the winch system includes an auxiliary pendant switch control alongside the wireless receiver. If the remote battery runs low or radio signals are blocked, you can seamlessly switch to wired manual control.

Q3: What safety features are built into the 5-ton AMWE electric winch?

A3: The winch is built with multiple redundant safety mechanisms, including:

•  An electromagnetic brake system for instant locking upon power cutoff or button release.
•  An emergency stop button on both the control box and the wireless transmitter.
•  Thermal overload protection to prevent motor burnout under extreme conditions.

Q4: Can the voltage and frequency be customized for our local power grid?

A4: Absolutely. While 380V/3-Phase/50Hz is standard for industrial applications, we offer fully customized electrical control boxes for various global voltages, including 220V, 240V, 415V, 440V, or 480V at 50Hz/60Hz (3-phase).

Q5: What wire rope capacity and speed options are available for the 5,000 kg model?

A5: The standard drum capacity accommodates 100m to 300m of steel wire rope, with customizable drum lengths for special requirements. Lifting/pulling speeds generally range from 8 m/min to 16 m/min, and variable frequency drives (VFD) are available for precise dual-speed or stepless speed control.

Q6: How does wireless control handle dusty or humid outdoor environments?

A6: The control box and wireless receiver module are rated IP65/IP66 waterproof and dustproof, housed in heavy-gauge steel enclosures. The transmitter is impact-resistant and sealed to withstand outdoor weather, rain, and dusty construction environments.
