CE Certified | ISO 9001 Factory | G80 Chain | 1-Year Warranty

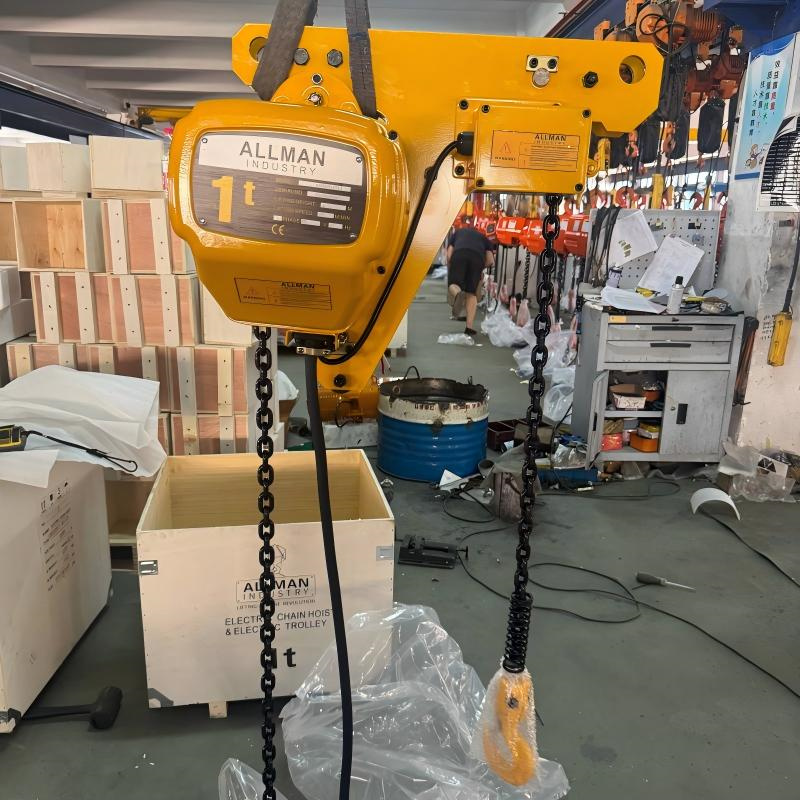

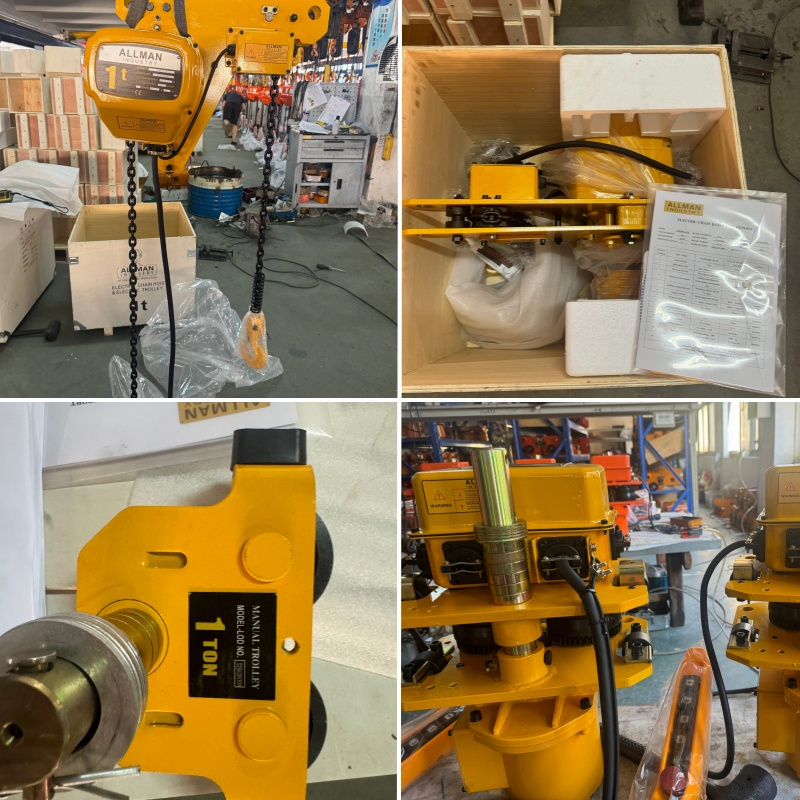

The AMEH Low Headroom Electric Chain Hoist is designed for applications where lifting space is limited. By integrating the electric chain hoist with a compact trolley structure, it significantly reduces the required headroom height and maximizes the available lifting space.
The AMEH Low Headroom Electric Chain Hoist is widely used in workshops, factories, maintenance facilities, production lines, and light-duty crane systems where efficient material handling and precise positioning are required.
| Parameter | Value |
| Rated Capacity | 1,000 kg (1 ton) |
| Lifting Speed | 6.6m/min (single speed) |
| Trolley Travel Speed | 21 m/min (as standard) |
| Lifting Height | 3 m standard (Customizable up to 30 m) |
| Load Chain | G80 grade, Ø7.1 mm, 1 fall |
| Chain Container | Included as standard |
| Motor Insulation Class | F |
| Protection Grade | IP54 |
| Trolley Beam Range | Adjustable; specify beam flange width when ordering |
| Control | Pendant controller with emergency stop, Up/Down, Left/Right |
| Power Supply | 220V-690V / 3-phase / 50/60Hz |
| Overload Protection | 125% rated load (standard) |
| Warranty | 1 Year |
Tips: Full engineering drawing with key dimensions and beam flange range available upon request.
For lifting components, machinery parts and production materials.
For frequent material handling and positioning.
For equipment installation and repair work.
Compatible with overhead crane systems and monorail systems.
Tips: Lifting something outside these examples? Tell us your load, lift height, and duty cycle — we'll confirm the right configuration.
l Beam Fit Trolley flange adjustment range custom-matched to your existing I-beam dimensions. No field modifications required.
Nantong Allman Industry Co., Ltd. is a professional manufacturer and exporter of lifting equipment. With more than 20 years of industry experience, we focus on the research, development and production of electric winches, electric chain hoists, manual winches, manual chain hoists and related lifting accessories.
We are committed to providing high-quality products, stable performance and reliable after-sales service. We offer customized OEM/ODM solutions to meet different requirements of global customers.
Our products are well sold in Europe, South America, North America, Africa, Southeast Asia and other regions. We aim to build long-term cooperative relationships with global partners based on mutual benefit and win-win results.
Q: What is a low headroom electric chain hoist?
A: A low headroom electric chain hoist is designed with a compact structure to reduce the distance between the hook and supporting beam, maximizing lifting height in limited spaces.
Q: What is the difference between standard and low headroom electric chain hoist?
A: The low headroom type has a shorter hook-to-beam distance, making it more suitable for workshops or buildings with limited height.
Q: Can this hoist be used outdoors?
A: Standard IP54 protection handles occasional splashing and dust ingress. For permanent outdoor or coastal installation, we recommend upgrading to C4/C5 anti-corrosion coating and adding a rain cover for the motor housing. Share your site conditions with our team for a tailored recommendation.
Q: How do I determine the right beam flange width for the trolley?
A: Measure your existing I-beam flange width and thickness with a caliper. Our trolley has an adjustable range — provide the measurement when ordering. If you're designing a new beam system, we can recommend standard I-beam profiles that fit without modification.
Q: What are the MOQ and lead time?
A: Sample orders: 1 unit accepted. Bulk orders: 10 units MOQ. Lead time: 15–25 days for standard models, 25–40 days for custom voltage or extended lifting height configurations.
Q: Do you supply spare parts and after-sales support?
A: Yes. We stock load chains, brake discs, contactors, pendant controllers, trolley wheels, gear sets, and guide rollers. Spare parts ship within 3–5 working days. Technical support is available via email and WhatsApp throughout the warranty period and beyond.
Q: What industries use low headroom chain hoists?
A: They are commonly used in manufacturing plants, automotive workshops, warehouses, maintenance facilities and steel structure workshops.
Q: Can the voltage and lifting height be customized?
A: Yes. Voltage, lifting height, trolley width and control options can be customized according to customer requirements.
