Low Headroom Electric Chain Hoist with Motorized Trolley

Introduction

Designed for applications where conventional electric hoists cannot provide sufficient clearance, this low headroom electric chain hoist combines compact vertical dimensions with motorized trolley travel, helping you make better use of the available space beneath the overhead beam.

Key Benefits:

Low headroom design for limited clearance applications;

Motorized trolley for horizontal load movement;

Compact hoist and trolley configuration;

Helps maximize usable lifting height;

Suitable for factories, workshops, warehouses and overhead crane systems;

Multiple capacities, lifting heights and configurations available.

Why Choose ALLMAN Low Headroom Electric Chain Hoist

When Headroom Is Limited, Every Millimeter Matters. In many workshops and industrial facilities, the available space between the overhead beam and the load is limited.

A conventional hoist may occupy more vertical space above the hook, reducing the usable lifting height available below the beam.

A low headroom electric chain hoist is designed to reduce this overhead space, allowing the hook to reach a higher position when the building height is fixed.

The main advantage of a low headroom hoist is not simply its compact appearance. It is the ability to make better use of the vertical space available in your facility.

For example, when the building height and overhead beam position are fixed, reducing the distance between the beam and hook allows the load to be lifted closer to the beam. This is especially useful for:

① Low-ceiling workshops

② Existing overhead crane systems

③ Production lines with limited clearance

④ Warehouses with restricted vertical space

⑤ Machinery installation and maintenance

⑥ Applications requiring maximum hook height

Standard Hoist vs. Low Headroom Hoist

• Compact Low Headroom Design: The hoist and motorized trolley are designed as an integrated lifting and travelling system.
• Low Headroom Hoist: The compact hoist configuration helps reduce the vertical space required above the hook.
• Motorized Trolley: The motorized trolley allows the hoist to travel along the overhead beam, providing both lifting and horizontal load movement.
• Integrated Configuration: Combining the low headroom hoist with a motorized trolley creates a practical solution for applications where both lifting capacity and available headroom are important.

Technical Parameters

Tips: Click here to contact us for detailed specifications.

About ALLMAN

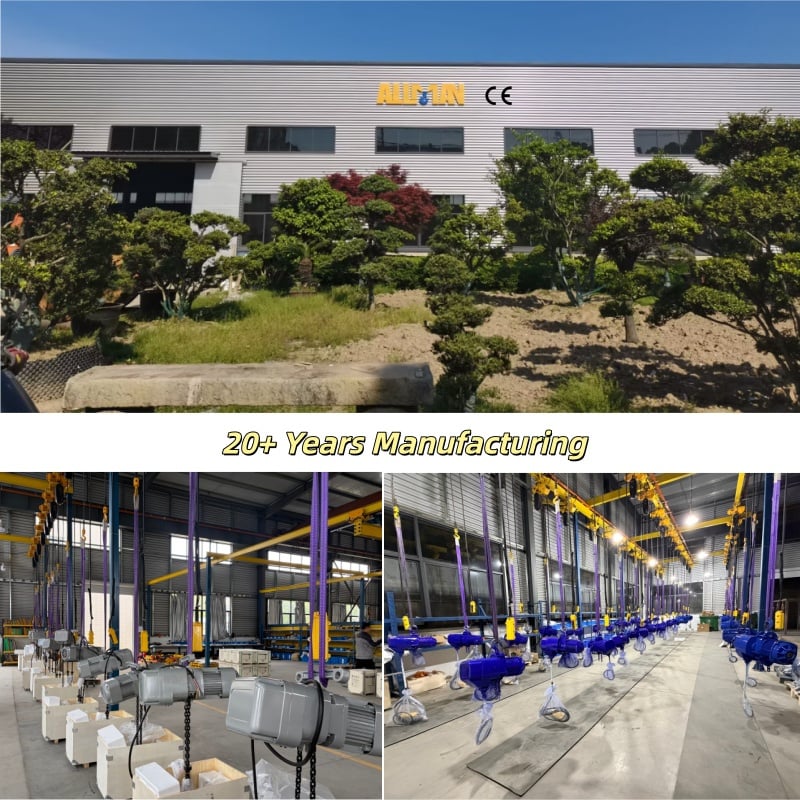

Nantong Allman Industry Co., Ltd. specializes in hoisting and lifting equipment, offering electric winches, cranes, and hoists for industries like construction, mining, and offshore. With 20+ years of experience, we ensure quality and safety through compliance with European standards.

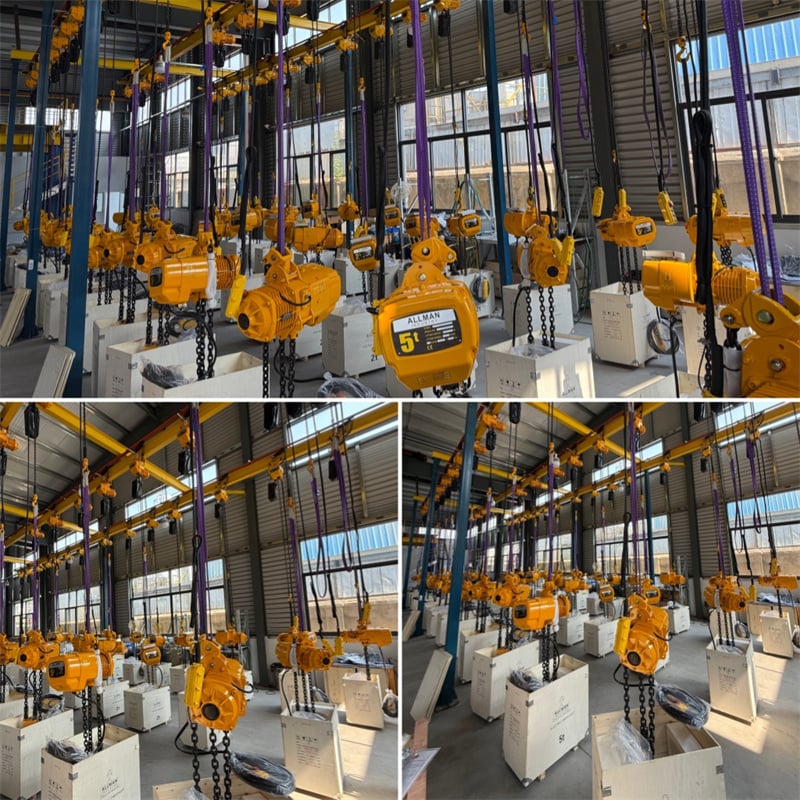

Located in Wellman Machinery, No.186, Tiantong Road, Nantong city, Jiangsu Province, China, Allman factory takes a cover of 6600 square meters. For electric chain hoist, we have the biggest factory, can output over 5000 units electric chain hoist per month. As for the electric winch, we are one of the only two manufacturers of heavy duty electric winch, quality is the No.1 in China. Our engineers are still keeping developing more electric lifting winches like multipurpose electric winch, small electric winch to fit for different use situation.

Moreover, ALLMAN is also a trustworthy supplier of other hand operated lifting tools like chain block, lever hoist, magnetic lifter, lifting clamps, girder trolley, hand pallet truck, steel wire ropes, aluminum and fiber-glass ladders and so on.

FAQ

1, Q: What is a low headroom electric chain hoist?

A: A low headroom electric chain hoist is designed to reduce the vertical space required between the overhead beam and the hook, making it suitable for applications with limited overhead clearance.

2, Q: What is the advantage of a low headroom chain hoist?

A: The main advantage is better use of available vertical space. By reducing the required headroom, the hoist can provide a higher hook position under the same building and beam height.

3, Q: When should I use a low headroom electric hoist?

A: A low headroom hoist is recommended when the workshop has limited ceiling height or when the existing overhead beam leaves insufficient clearance for a conventional hoist.

4, Q: What is the headroom dimension of a low headroom hoist?

A: The headroom dimension depends on the hoist model and trolley configuration. Please refer to the technical drawing for the exact H dimension of each model.

5, Q: Can a low headroom chain hoist be equipped with a motorized trolley?

A: Yes. A low headroom electric chain hoist can be configured with a motorized trolley for both vertical lifting and horizontal movement along an overhead beam.

6, Q: What beam can the low headroom hoist be installed on?

A: The trolley needs to match the beam type, flange width and beam dimensions. Customers should provide the beam specifications when requesting a quotation.

7, Q: Is a low headroom hoist suitable for an overhead crane?

A: Yes. Depending on the configuration and technical requirements, a low headroom electric chain hoist with trolley can be used as a lifting unit on overhead crane systems.

8, Q: Can the lifting height be customized?

A: Yes. The lifting height can be configured according to the customer's application requirements and installation conditions.

9, Q: What capacity options are available?

A: The available lifting capacity depends on the product series. Customized configurations can be discussed according to the required working load.
